Introducing RetainEX

The Ultimate Retaining Wall Design Software!


We are excited to introduce RetainEX, our brand-new software solution tailored specifically for the design and analysis of gravity retaining walls and MSE (Mechanically Stabilized Earth) walls. Built on the powerful and interactive interface of DeepEX, RetainEX provides an intuitive yet comprehensive environment for engineers and contractors to streamline their retaining wall design process.


Why Choose RetainEX?

RetainEX is designed to save time and effort in designing and analyzing retaining walls, offering powerful calculations, compliance with international structural and geotechnical design codes, and an easy-to-use interface. Whether you're working on simple gravity walls or complex MSE walls with soil reinforcements, RetainEX has you covered.


MSE wall supporting a gravity section traffic barrier - RetainEX software

Figure: MSE wall supporting a gravity section traffic barrier - RetainEX software


Software Structure and Capabilities

Base Version (Included)

  • Gravity Wall Design: Model and analyze any shape of gravity retaining walls with full flexibility.

  • MSE Wall Design: Design and analyze embankments and backfills with geogrids, geotextiles, steel strips, and more.

  • Limit Equilibrium Methods: Perform stability checks using traditional methods for reliable results.


Gravity wall - analysis results in RetainEX

Figure: Gravity wall - analysis results in RetainEX


Optional Add-On Modules

  • Slope Stability Analysis Module

    • Calculate the Factor of Safety (FS) using multiple methods (Bishop, Morgenstern-Price, Spencer, Swedish Method).

    • Find the most critical failure surface with advanced search methods (genetic algorithm, circular surfaces, block-type failure, custom surfaces).

    • Note: Soil nailing is not included in RetainEX.


  • Finite Element Analysis (FEM) Module

    • Perform advanced soil-structure interaction analysis using our built-in DeepFEM engine.

    • Model real-world construction stages and analyze soil behavior under different conditions.

    • Incorporate various soil constitutive models, drained/undrained conditions, and structural interactions.

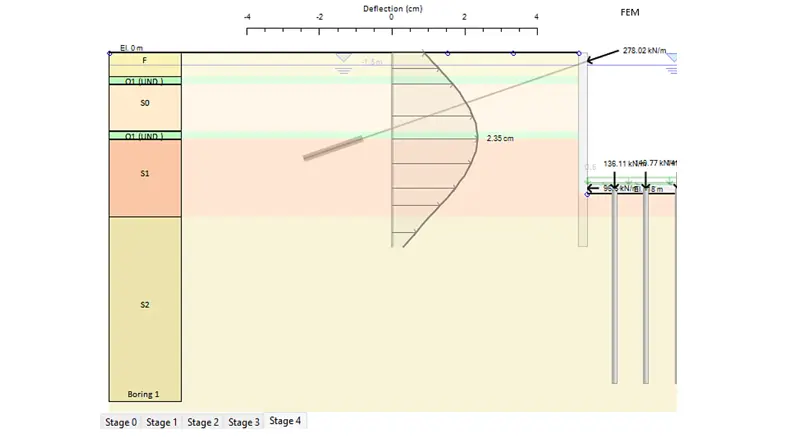

Slope stability analsis and FEM analysis results in RetainEX

Figure: Slope stability analsis and FEM analysis results in RetainEX


Streamline Your Retaining Wall Projects with RetainEX!

RetainEX is your go-to solution for fast, efficient, and code-compliant design of gravity and MSE retaining walls. Whether you’re an engineer, contractor, or designer, this software will enhance your workflow, increase accuracy, and optimize your projects.


Try RetainEX Today! Experience the power of RetainEX and take your retaining wall designs to the next level. Get started today and revolutionize your design process!



Ready to streamline your retaining wall designs?




Let us show you how to reduce your design time by up to 90%!
